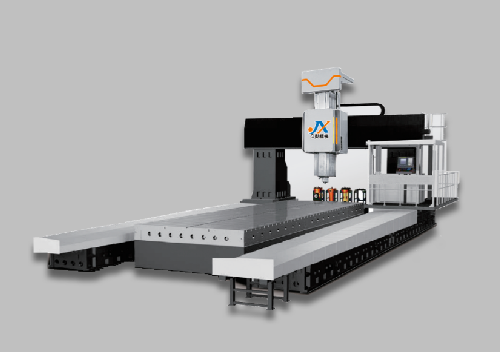

Dynamic Column CNC Gantry Boring Milling Machine

Category:Dynamic Column CNC Gantry Milling Machine
Number of views：614
Time:2023-06-29

Enquire

Overview

The product adheres to the characteristics of traditional gantry machine tools, such as strong rigidity, symmetrical structure, and high stability. It adopts a crossbeam moving frame structure, and the lightweight of the moving part reduces the driving load of the ball screw, reduces the wear of the screw and guide rail, and improves the dynamic performance of the product.

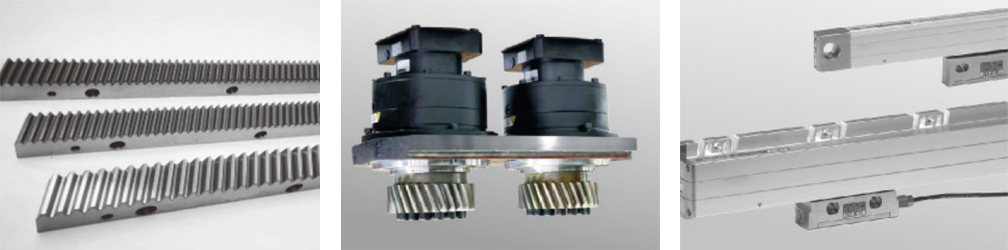

Germany imports precision wheels and bars to ensure smooth operation and enhance mechanical accuracy.
The dynamic column series high-precision dual motor clearance transmission mechanism meets the requirements of high-speed and high-precision linkage cutting.
Full closed-loop position detection: To ensure the accuracy and stability of the machine tool, precision gratings with a resolution of 0.001mm are used for position detection of each coordinate axis to compensate for the accuracy changes of the rack and ball screw; To achieve full closed-loop control of machine tools.

Specification parameters
machine range	DSK-35series	DSK-45series	DSK-50series	DSK-60series
X-axis stroke(mm)	8500(10500/12500/	8500(10500/12500/	8500(10500/12500/	8500(10500/12500/
X-axis stroke(mm)	16500/20500/24500)	16500/20500/24500)	16500/20500/24500)	16500/20500/24500)
Travel Y-axis (mm)	4000	5000	5300	6500
Z-axis travel(mm)	1200/1500	1200/1500	1200/1500	1200/1500
Longmen effective width(mm)	3500	4500	5000	6000
Spindle working time(mm)	200-1400/1700	200-1400/1700	200-1400/1700	200-1400/1700
staging
size(XxYaxis directionmm)	8000(10000/12000/16000/	8000(10000/12000/16000/	8000(10000/12000/16000/	8000(10000/12000/16000/
size(XxYaxis directionmm)	20000/24000)X2800	20000/24000)X3200	20000/24000)X3200	20000/24000)X4500
t-slot(mm)	28	28	28	28
maximum payload(kg)	10	10	10	10
main shaft
Spindle speed(rpm)	4500/6000	4500/6000	4500/6000	4500/6000
Spindle transmission mode	BFDirect connection	BFDirect connection	BFDirect connection	BFDirect connection
taper	BT50	BT50	BT50	BT50
Drive feed
Three axis rapid movement(m/min)	X10/Y10/Z10	X10/Y10/Z10	X10/Y10/Z10	X10/Y10/Z10
Cutting feed(m/min)	1-8000	1-8000	1-8000	1-8000
Minimum input unit(mm)	0.001	0.001	0.001	0.001
positioning accuracy (mm)	±0.03	±0.03	±0.03	±0.035
repeatability(mm)	±0.02	±0.02	±0.02	±0.03
Disc type knife magazine
Number of cutting tools (pieces)	24/32(Optional)	24/32(Optional)	24/32(Optional)	24/32(Optional)
Knife handle specifications	BT50	BT50	BT50	BT50
Knife selection method	Bidirectional arbitrary	Bidirectional arbitrary	Bidirectional arbitrary	Bidirectional arbitrary
Tool exchange time(sec)	T-T:2.5SEC	T-T:2.5SEC	T-T:2.5SEC	T-T:2.5SEC
Maximum tool weight(kg)	15/300	15/300	15/300	15/300
power
main shaft(kw)	22-30	22-30	22-30	22-30
X/Y axle(kw)	5.5	5.5	6	6
Zaxle	5.5(刹)	5.5(刹)	6(刹)	6(刹)
	X:rack and pinion/Y： 8016	X:rack and pinion/Y： 8016	X:rack and pinion/Y： 8016	X:rack and pinion/Y： 8016
Screw form	/Z:6312-C3	/Z:6312-C3	/Z:6312-C3	/Z:6312-C3
	Track sliderX:55/	Track sliderX:55/	Track sliderX:55/
Sliding rail form	丫 :55/Z:Square Ram	Y:55/Z:Square Ram	丫 :55/Z:Square Ram	丫 :55/Z:Square Ram
other
power capacity(KVA)	60	60	60	60
weight⑴	80-150	90-180	90-180	100-200
Air pressure demand(KGF/CM2)	N6	>6	N6	>6
	12000(15000/18000/	12000(15000/18000/	12000(15000/18000/	12000(15000/18000/
Area demandL xWxH(mm)	26000/32000)X8000X6500	26000/32000)X9000X6500	26000/32000)X9300X7000	26000/32000)X9800X7000
