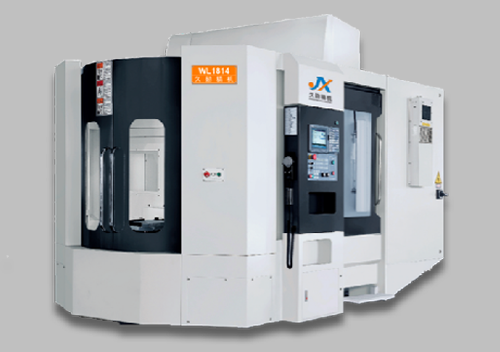

WL-1814 Machining Center

Category:Machining Center
Number of views：562
Time:2023-06-29

Enquire

Overview

1.High speed, high precision, large load-bearing capacity, small footprint, and strong rigidity.

2.In terms of machine tool design, Jiuxun Precision Machinery takes the lead in applying the latest Topu analysis software and finite element analysis software to machine tool design. Strengthen the overall structural rigidity and interface rigidity. Cooperate with high-efficiency spindle motors to fully utilize heavy cutting capabilities. Adopting an imported control system, coupled with strict dynamic balance correction. Make high-precision and high-quality machining possible.

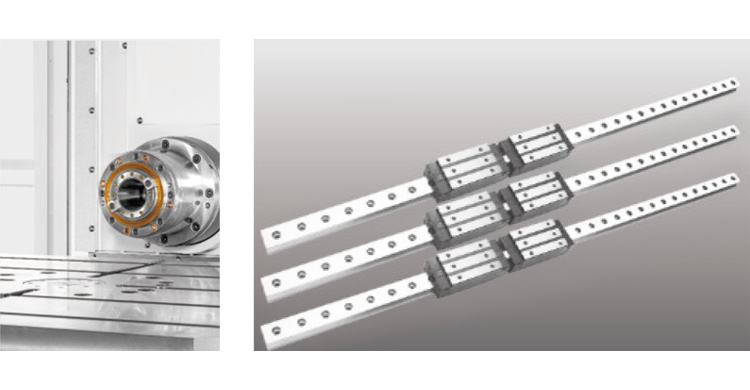

3.Adopting Taiwan high-precision spindle with a standard speed of 6000rpm and equipped with spindle air curtain protection device to ensure high-precision stability and long service life of the spindle, with an optional speed of 3000 rpm. The spindle is driven by a high-power (18.5-30kw) dual winding wide area servo motor, with a torque of up to 210NM (opt3000 rpm can reach 420NM). The workbench adopts high-precision gear disc positioning, with a positioning accuracy of ± 2 "and a repeat positioning accuracy of ± 1".

4.All three axis rail models use internationally renowned brand high-precision rail, which has the following advantages: high rigidity, low rolling resistance coefficient, high positioning accuracy, and good surface accuracy of processed products.


Specification parameters
Machining	WL-1290	WL-1812	WL-2214	WL-2516	WL-3018
X-axis stroke(mm)	1200	1800	2200	2600	3000
Y-axis stroke(mm)	900	1200	1400	1700	1800
Z-axis stroke(mm)	500	500	500	700	1000
Spindle speed(rpm)	0-6000	0-6000	0-6000	0-6000	0-6000
Transmission mode	Gear/Belt	Gear/Belt	Gear/Belt	Gear/Belt	Gear/Belt
Spindle center to worktable(mm)	50-950	50-1250	50-1550	50-1750	80-1880
Spindle end face to worktable center(mm)	150-650	200-700	200-700	200-900	200-1200
Workbench size(mm)	1300x700	2000x1100	2200x1300	2650x1400	3200x1700
Maximum load capacity of workbench(kg)	4000	8000	10000	15000	18000
T-shaped slot size(mm)	5x22x200（transverse）	8x22x200（transverse）	9x22x200（transverse）	12x22x200（transverse）	13x22x220（transverse）
rotary table	Optional	Optional	Optional	Optional	Optional
CNC system (set)	FANUC OiMF	FANUC OiMF	FANUC OiMF	FANUC OiMF	FANUC OiMF
Cutting SpeedX/Y/Z（m/min）	8	6	6	6	6
Speed movement(m/min)	12	10	10	10	10
spindle(kw)	18.5/22	30	30	30	37
Machine tool positioning accuracy(mm)	±0.015/300	±0.015/300	±0.015/300	±0.015/300	±0.015/300
Machine tool repeat positioning accuracy(m/min)	±0.01	±0.01	±0.01	±0.01	±0.01
Required air pressure(kgf/cm“	6	6	6	6	6
Voltage demand(KVA)	50/60	50/60	50/60	50/60	50/60
Machine weight(kg)	13000	22000	26000	32000	45000
Dimensions: Length x Width x Height（mm）	4160x3000x3700	5500x3500x4000	6200x3700x4200	6780x4500x4500	7600x5000x5200
