Material: The body is made of HT250 cast iron, which has undergone quenching and tempering treatment and aging to eliminate pressure, wear resistance, and minimize deformation.
Workbench processing: Precision grinding of workbench guide rails and ultra thick PTFE wear-resistant plates, precision grinding and manual scraping of base guide rail surfaces to ensure long-term accuracy, high-frequency heat treatment quenching of rectangular guide rails.
Transmission system: X Y. The Z-axis adopts precision ball screw transmission, with smoother and smoother feed. The moving gear undergoes heat treatment, precision grinding, wear resistance, and excellent stability in heavy cutting.
Iron head: Taiwan 15HP strong cutting type cutting head, pneumatic locking tool, changing the manual locking tool used for general iron beds, fast and convenient.
| Specification Table | |||||
| Project/Model | unit | DZ1875 | DZ2080 | DZ2512 | DZ3O15 |
| Machining length | mm | 1800 | 2000 | 2500 | 3000 |
| Processing height | mm | 315 | 315 | 315 | 315 |
| Table size | mm | 1800x750 | 2000x800 | 2500x1200 | 3000x1500 |
| Iron head motor power | KW | 11 | 11/15 | 11/15 | 11/15 |
| Spindle hole taper | NT50 | NT50 | NT50 | NT5O | |
| Total power of machine tool | KW | 15 | 15/19 | 15/19 | 15/19 |
| Total mechanical weight | KG | 5000 | 6000 | 8000 | 9000 |
| overall dimension | m | 4500x1800x1600 | 6000x1900x1600 | 7500x2200x1600 | 9000x2500x1600 |
DTK-55 Moving Beam Gantry Mobile Machining Center
Dynamic Column CNC Gantry Boring Milling Machine
XTK-2016 CNC Gantry Machining Center

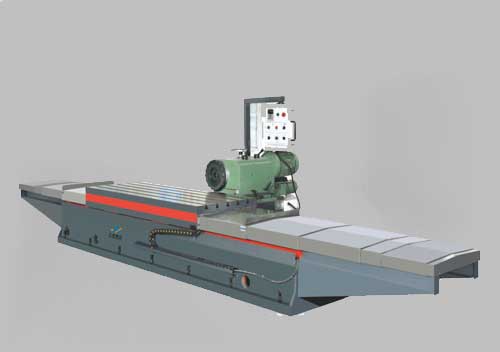

MTK-8035 CNC Gantry Guide Rail Grinder
