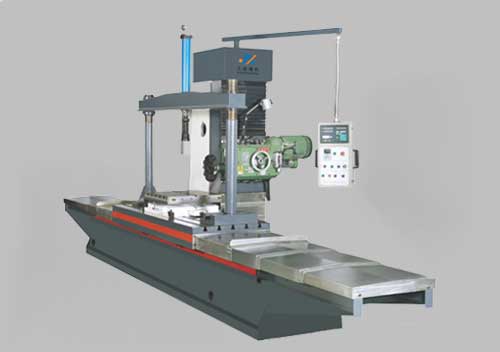

Material: The body is made of HT250 cast iron, which has undergone quenching and tempering treatment and aging to eliminate pressure, wear resistance, and minimize deformation.
Workbench processing: Precision grinding of workbench guide rails and ultra thick PTFE wear-resistant plates, precision grinding and manual scraping of base guide rail surfaces to ensure long-term accuracy, high-frequency heat treatment quenching of rectangular guide rails.
Transmission system: X Y. The Z-axis adopts precision ball screw transmission, providing smoother and smoother operation. The moving gear has undergone heat treatment, precision grinding, wear resistance, and excellent stability in heavy cutting.
Gun head: Taiwan 15HP strong cutting type iron head, pneumatic locking tool, changing the manual locking tool used in general gun beds, fast and convenient.
Feed system: The three-way feed is driven by Taiwanese variable frequency motors and displayed with Taiwanese Marriott digital grating rulers to ensure the accuracy of the machine tool.
| Specification Table | |||
| Project/Model | unit | DX1875 | DX2080 |
| Machining length | mm | 1800 | 2000 |
| Processing height | mm | 800 | 800 |
| Table size | mm | 1800x750 | 2000x800 |
| Iron head motor power | HP | 12.5 | 15 |
| Spindle hole taper | NT | NT50 | NT50 |
| Total power of machine tool | KW | 15 | 19 |
| Total mechanical weight | KG | 5000 | 6000 |
| overall dimension | m | 4500x1800x2400 | 6000x1900x2400 |
Note: Due to continuous mechanical improvement and data updates, all data changes are subject to actual conditions
