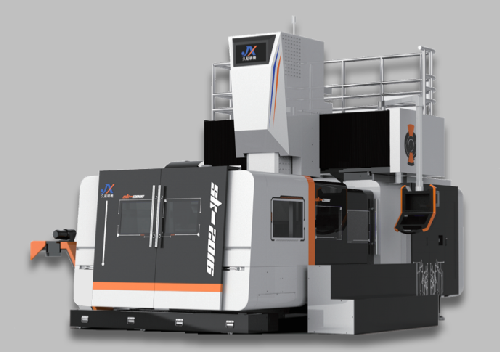

XTK-2016 CNC Gantry Machining Center

Category:CNC Gantry Machining Center
Number of views：584
Time:2023-06-29

Enquire

Overview

1. Winning the reputation of customers with heavy-duty cutting, stability, and precision. The important factor not only comes from exquisite design and construction, but more importantly, we use various precision instruments to thoroughly control the quality.

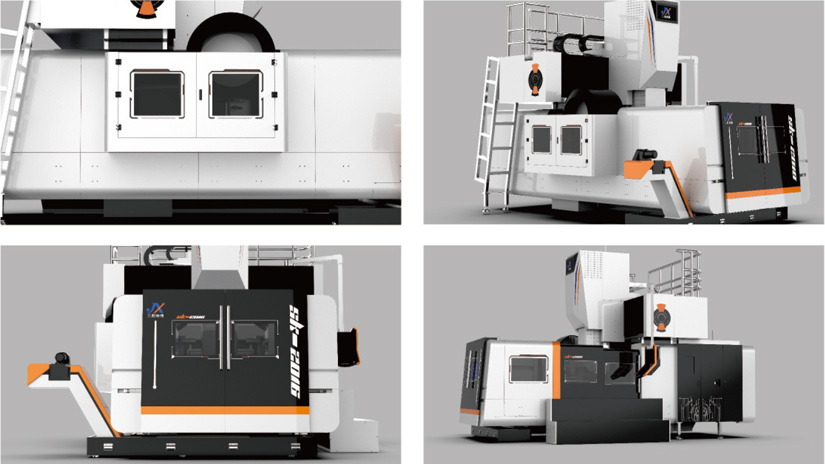

2.The newly designed appearance structure of the machine tool reflects better comfort and more effective waterproof and chip removal performance. Rich accessory heads, supplemented by various head changing methods, meet various processing needs.

3.Intelligent pre diagnosis solution, new maintenance concept, transforming traditional passive service into active service.

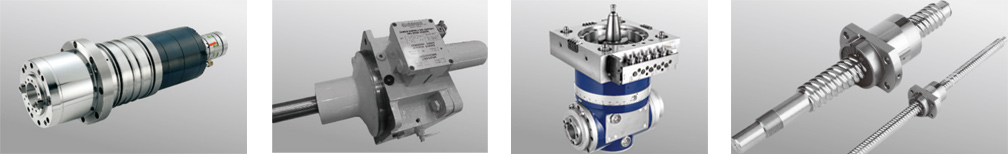

The three-axis adopts Taiwanese/European double nut precision ball screws, which undergo hardness heat treatment and precision grinding to ensure optimal feed accuracy and micro feed. The guide rails are all imported heavy-duty line rails, which have the characteristics of fast speed, high rigidity, low friction, low noise, and low temperature rise and change.

Automatic head compartment, compact structure, achieves automatic head replacement to reduce processing auxiliary time and improve processing efficiency.

BF gearbox, high-strength gear combination, high and low gear switching, meets various machining needs. There is a neutral gear for easy adjustment and maintenance.

We use high-speed, high-precision, high rigidity heavy-duty spindle units produced by professional manufacturers in Taiwan, with strong axial and radial bearing capacity.


Specification parameters
Machine range	XTK-2216	XTK-2518	XTK-3022	XTK-4028	XTK-6032	XTK-6036	XTK-6540	XTK-8036	XTK-8545
X Axial travel(mm)	2200	2500	3200	4000	6000	6000	6500	8000	8500
丫 Axial travel（mm)	1600	1800	2200	2800	3200	3600	4000	3600	4500
Z Axial trave(mm)	850	1000	1000	1200	1200	1500	1500	1500	1500
Longmen effective width(mm)	1650	1850	2250	2850	3250	3650	4050	3650	4550
Spindle nose table surface (mm) 200-1050		200-1200	200-1200	200-1400	200-1400	200-1700	200-1700	200-1700	200-1700
Staging
Size(XxY Axial travelmm)	2200x1400	2500x1600	3000x1800	4000x2500	6000x2800	6000x3000	6500x3200	8000x3000	8500x3500
T groove(mm)	22	22	22	28	28	28	28	28	28
Maximum payload(kg)	6000	8000	10000	12000	18000	20000	25000	28000	30000
Main shaft
Spindle speed(rpm)	6000	6000	6000	4500/6000	4500/6000	4500/6000	4500/6000	4500/6000	4500/6000
Spindle transmission mode	Belt Type	Belt Type	BF Direct Connection	BF Direct Connection	BF Direct Connection	BF Direct Connection	BF Direct Connection	BF Direct Connection	BF Direct Connection
taper	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50
Drive feed
Three axis rapid movement(m/min)	X12/Y12/Z10	X12/Y12/Z10	X12/Y12/Z10	X10/Y10/Z10	X10/Y10/Z10	X10/Y10/Z10	X10/Y10/Z10	X10/Y10/Z10	X10/Y10/Z10
Cutting feed(m/min)	1-8000	1-8000	1-8000	1-8000	1-8000	1-8000	1-8000	1-8000	1-8000
Minimum input unit(mm)	0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001
Positioning accuracy (mm)	±0.015	±0.015	±0.015	±0.015	±0.015	±0.015	±0.015	±0.015	±0.015
Repeatability(mm)	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01
Disc type knife magazine
Number of cutting tools (pieces)	24 optional options	24 optional options	24 optional options	24 optional options	24 optional options	24 optional options	24 optional options	24 optional options	24 optional options
Knife handle specifications	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50
Knife selection method	Bidirectional arbitrary	Bidirectional arbitrary	Bidirectional arbitrary	Bidirectional arbitrary	Bidirectional arbitrary	Bidirectional arbitrary	Bidirectional arbitrary	Bidirectional arbitrary	Bidirectional arbitrary
Tool exchange time(sec)	T-T25SEC	T-T:2.5SEC	T-T:2.5SEC	T-T:2.5SEC	T-T:2.5SEC	T-T:2.5SEC	T-T25SEC	T-T25SEC	T-T:2.5SEC
Maximum tool weight(kg)	15/300	15/300	15/300	15/300	15/300	15/300	15/300	15/300	15/300
