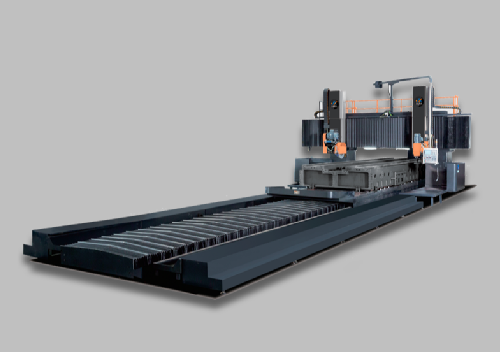

MTK-8035 CNC Gantry Guide Rail Grinder

Category:CNC Gantry Guide Rail Grinder
Number of views：599
Time:2023-06-29

Enquire

Overview

Adopting resin sand technology for precision casting, all castings are designed to be widened and thickened, with strong overall rigidity, high precision, and large load-bearing capacity.

The bed adopts double V-shaped guide rails, the worktable guide rails are attached with PTFE guide rails, the crossbeam is a steel embedded rectangular guide rail, and the moving parts use rolling guide blocks, with good rigidity and motion sensitivity.

Mechanical, electrical, hydraulic and other important components are all made of high-quality imported parts.

Humanized operation panel, simple and easy to use.

Specification parameters
Machine range	MTK-3022	MTK-4025	MTK-5028	MTK-6030	MTK-8030	MTK-9035
Workbench dimensions length X width(mm)	3500X1800	4500X2100	5500X2400	6500X2500	9000X2500	10000X3000
Workbench T-slot size(mm)	22	28	28	36	36	36
Table speed(m/min)	5-25	5-25	5-25	5-25	5-25	5-25
The maximum load-bearing capacity of the workbench(T)	18000	22000	25000	26000	31000	33000
Column spacing(mm)	2250	2550	2850	3050	3050	3550
Horizontal grinding head motor power(kw)	22.5	22.5	22.5	30	37	37
Horizontal grinding head speed(r/min)	1450	1450	1450	1450	3000	3000
Horizontal grinding head slider stroke(mm)	900	900	900	1000	1000	1000
Horizontal grinding wheel specifications(mm)	0500X100X0203	0500X120X0203	0500X120X0203	0600X150X0305	0600X150X0305	0600X150X0305
Vertical grinding head motor power(kw)	11-15	11/15	11/15	11/15	11/15	11/15
Vertical grinding head speed(r/min)	0-2500	0-2500	0-2500	0-2500	0-2500	0-2500
Vertical grinding head slider stroke(mm)	900	900	900	1000	1000	1000
Vertical grinding head rotation angle	±90°	±90°	±90°	±90°	±90°	±90°
Vertical grinding wheel specifications(mm)	0405X50X0127	0405X50X0127	0405X50X 0127	0405X50X 0127	0405X75X0127	0430X75X0127
Lateral movement speed of grinding head(mm/min)	0-4000	0-4000	0-4000	0-4000	0-4000	0-4000
Grinding head lifting speed(mm/min)	0-3000	0-3000	0-3000	0-3000	0-3000	0-3000
The dimensions of the machine tool are approximately length X width X height(mm)	10500X5000X4000	12500X5300X4000	14500X5800X4000	16500X6000X4500	19500X6000X4500	21500X6500X4500
The total weight of the machine tool is approximately(kg)	38000	50000	60000	75000	85000	98000
