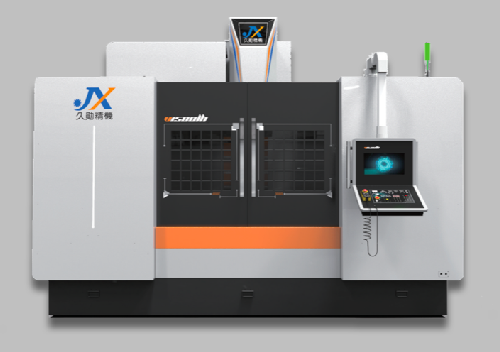

VMC-1580 Machining Center

Category:Machining Center
Number of views：1061
Time:2023-06-29

Enquire

Overview

Optional gear head design, with strict design requirements for the hard rails of the base saddle and column. Its super large structural body is reinforced with ribs and bones to enhance load capacity, without the problem of worktable suspension. The sliding surface of the track is fitted with imported wear-resistant plates to reduce wear and maintain long-term accuracy requirements.

Scope of application: Heavy cutting processing such as template, mold processing, auto parts processing, engine casing, mechanical parts processing, etc.

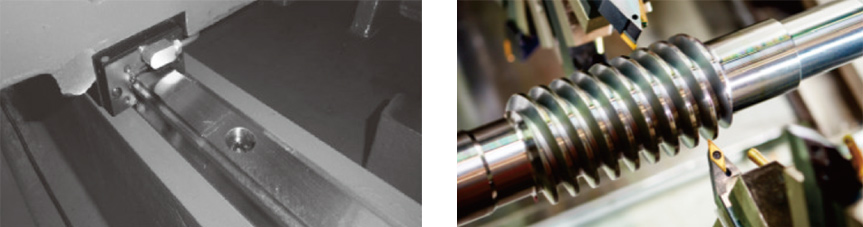

All three axes are equipped with high rigidity roller linear guides, which have excellent load-bearing capacity, high transmission accuracy, and good precision retention. Can meet the requirements of rough machining and precision machining.

All three axes are equipped with high-precision double nut preloaded precision ball screws, coupled with locking and pulling designs on both ends of the support seat, which can eliminate transmission backlash and pre compensate for errors caused by temperature rise, ensuring positioning accuracy.

Specification parameters
Machining	VMC-855	VMC-1060	VMC-1160	VMC-1370	VMC-1680	VMC-1690	VMC-1890
X-axis stroke(mm)	800	1000	1100	1300	1600	1600	1800
Travel Y-axis (mm)	550	600	600	700	800	900	900
Z-axis travel(mm)	550	600	600	660	660	700	700
The spindle touches the worktable and rolls away(mm)	120-670	120-720	120-720	150-810	180-880	200-900	200-910
Distance from spindle center to Z-axis track surface(mm)	595	650	650	800	900	1000	1000
Staging
Workbench size(mm)	800X550	1000X600	1100X600	1400X710	1700X820	1700X900	1900X900
Maximum load capacity of workbench(kg)	800	1000	1000	2000	2500	3000	3000
T-shaped groove width X quantity X spacing(mm)	18X5X90	18X5X100	18X5X100	18X5X130	18X7X120	18X7X120	18X7X120
Main shaft
Main spindle type	Belt Type	Belt Type	Belt Type	Belt/Gear	Belt/Gear	Belt/Gear	Belt/Gear
Spindle speed(rpm)	8000	8000	8000	6000	6000	6000	6000
Spindle taper	BT40	BT40	BT40	BT50	BT50	BT50	BT50
Spindle motor power(kw)	7.5/11	11/15	11/15	15/18.5	15/18.5	15/18.5	15/18.5
F
Rapid feedX/Y/Z(mm/min)	48/48/48	36/36/36	36/36/36	15/15/15	15/15/15	15/15/15	15/15/15
Cutting feed	1-10000	1-10000	1-10000	1-10000	1-7000	1-7000	1-7000
Feed motor power X/Y/Z(KW)	2X2X3	3X3X4.5	3X3X4.5	Fanuc (4.0/4.0/4.0B)	Fanuc (4.0/7.0/7.0B)	Fanuc (4.0/7.0/7.0B)	Fanuc (7.0/7.0/7.0B)
Automatic tool changing and tool magazine
Positioning accuracy (mm) ± 0.005/300		± 0.005/300	± 0.005/300	±0.005/300	±0.005/300	±0.005/300	± 0.005/300
Repeatability(mm)	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003
Accuracy
ATCform	Knife arm type	Knife arm type	Knife arm type	Knife arm type	Knife arm type	Knife arm type	Knife arm type
Tool storage capacity standard (tool storage position)	24	24	24	24	24	24	24
Maximum tool diameter full/no adjacent tools(mm)	75/150	75/150	75/150	75/150	75/150	75/150	75/150
Maximum tool length(mm)	300	300	300	300	300	300	300
Maximum tool weight(kg)	8	8	8	8	8	8	8
Knife handle form	BT40	BT40	BT40	BT50	BT50	BT50	BT50
Tool changing speed, tool alignment(sec)	4.5	4.5	4.5	4.5	4.5	4.5	4.5
Other
Power demand(KVA)	20	20	20	20	20	20	20
Air pressure demand(Kgf/cm，)	6	6	6	6	6	6	6
Whole machine weight NET	6000	7000	7500	9000	14000	15000	16000
Land occupation requirement (length X width X height)	2450X2050X2250	2750X2170X2350	2950X2170X2350	4700X3675X3250	5815X3775X3290	5815X3875X3290	6115X3960X3500
