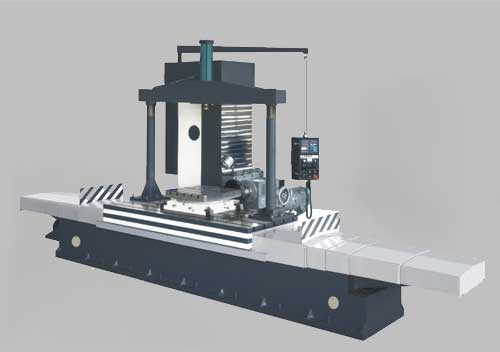

Precision Horizontal Milling Machine

Category:Machining Center
Number of views：403
Time:2023-07-25

Enquire

Overview

The base and column installation positions are cast as a whole, and the column is vertically installed on the base; The special force mouth bow on the base ensures the accuracy and strength of the machine tool, although the wall thickness of the nail mouth rib is thick.

Adopting a double "V" and rectangular combination guide rail design, it ensures the stability of heavy cutting while maintaining the accuracy of the machine tool.

The column adopts rectangular guide rails, divided into honeycomb shaped ribs, and enlarged and thickened guide rail surfaces. The iron head lifting part adopts a new hydraulic lock to improve the reliability and accuracy of the machine tool.

The workbench adopts a box type design and is specially thickened. In response to the needs of hydraulic gantry clamping in the mold base industry, anti workbench deformation ribs have been specially designed to prevent deformation of the workbench caused by the oil cylinder fastening the workpiece, improving accuracy and the service life of the machine tool.

Specification Table
technical specifications	unit	DS1580	DS2080	DS2512	DS3015
Workbench size	mm	1500x800	2000x800	2500x1200	3000x1500
T-shaped groove (width x number of grooves x spacing)	mm	5x24x180	5x24x180	6x24x180	7x24x180
Maximum cutting length	mm	1500	2000	1500	3000
Maximum cutting height	mm	800	800	800	1000
Maximum cutting width	mm	800	800	1200	1500
Iron head spindle speed	r.m.p	55-505 Six paragraphs	65-715 nine paragraphs	65-715nine paragraphs	65-715nine paragraphs
Iron head motor power	HP	12.5	15	15	15
Spindle taper hole	nt	50	50	50	50
Workbench motor	kw	3	5	7.5	11
Iron head lifting motor	kw	2	2	2	2
Full motor power	kw	15	18	18	18
Maximum load capacity of machine tool	kg	4000	5000	6000	7000
Machine weight (approximately)	kg	9000	11000	13000	18000
overall dimension	m	4500x1900x2200	6000x1900x2300	6800x2300x2500	7800x2600x2500
