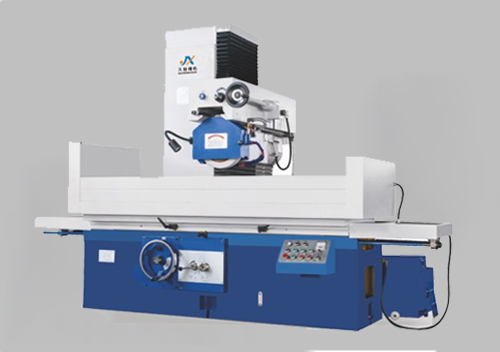

Horizontal Wheelbase Table Surface Grinder

Category:Machining Center
Number of views：521
Time:2023-07-25

Enquire

Overview

Mechanical characteristics:

Adopting a movable layout of grinding heads, the bed body is an integral structure, the columns are wide and heavy, and the whole machine has good rigidity;

The workbench and drag board guide rails are pasted with polytetrafluoroethylene guide soft tape, which has good wear resistance and long service life;

The front end of the spindle adopts tapered sliding bearings, which are easy to adjust for accuracy, have good rigidity, and high precision;

The vertical movement of the workbench and the horizontal movement of the grinding head are both driven by hydraulic pressure, with infinite speed regulation, and the horizontal feed can also be manually adjusted;

The vertical feed of the grinding head today adopts a precision ball screw pair transmission, which can be manually operated and equipped with a fast lifting mechanism, making it easy to operate;

Equipped with a demagnetization device for easy loading and unloading of workpieces, and equipped with a magnetic base grinding wheel dresser, grinding wheel dressing can be carried out without disassembling the workpiece;

The machine tool runs smoothly, has reliable performance, low noise, and is easy to operate, which is highly welcomed by users.

Specification Table
Main technical parameters	unit	M7163 x 12	M7163 x 16	M7163 x 20	M7180x12	M7180x16	M7180x20
Workbench size	mm	630x1250	630x1600	630x2000	800x1250	800x1600	800x2000
Maximum grinding size (width X length X height)	mm	630x1250x600	6300x1600x600	630x2000x600	800x1250x600	800x1600x600	800x2000 x 600
Vertical movement of workbench (hydraulic)	mm	200-1350	200-1700	200-2100	200-13500	200-1700	200-2100
Workbench speed (stepless speed regulation)	minm	5-25	5-25	5-25	5-25	5-25	5-25
Number of T-shaped slots on the workbench		3	3	3	3	3	3
width	mm	18	18	18	22	22	22
Workbench load capacity (including electronic suction cups)	kg	980	1200	2000	1600	2000	2500
Electronic suction cup size (width X length)	mm	630x1000	630x800 (2块)	630x1000 ( 2块)	800x1250	800x800 ( 2块)	800x1000 ( 2块)
Maximum lateral movement of grinding head	mm	680	680	680	850	850	850
Grinding head lateral feed (stepless speed regulation) continuous intermittent	mm/min	0.8-3	0.8-3	0.8-3	0.8-3	0.8-3	0.8-3
interrupted	mm/次	5-25	5-25	5-25	3-30	3-30	3-30
Minimum scale of vertical handwheel	mm	0.01	0.01	0.01	0.01	0.01	0.01
The handwheel rotates and the grinding head drops, giving a measurement	mm	0.5	0.5	0.5	0.5	0.5	0.5
Grinding wheel size (outer diameter X width X inner diameter)	mm	φ400×63×φ203	φ400x63xφ203	φ400x63 xφ203	φ450x63xφ203	φ400x50xφ203	φ400x50xφ203
Total capacity of electrical equipment	KVA	15	16	20	28	28	30
Grinding head motor	KW	9	9	9	15	15	15
Power speed	r/min	1440	1440	1440	1460	1460	1460
Parallelism of the machined surface to the base surface	mm	300:0.008	300:0.008	300:0.008	300:0.008	300:0.008	300:0.008
Surface roughness of workpiece	μm	Ra0.6	Ra0.63	Ra0.63	Ra0.63	Ra0.63	Ra0.63
overall dimension	mm	3800x2100x2500	4700x2100x2500	5600x2100x2500	3500x2350x2700	4800x2350x2700	6200x2350x2700
Dimensions	cm	401x230x300	460x230x300	520x230x300	400x250x315	461x250x315	481x250x315
Net weight (approximately)	kg	5500	6500	7500	8000	9000	11500
