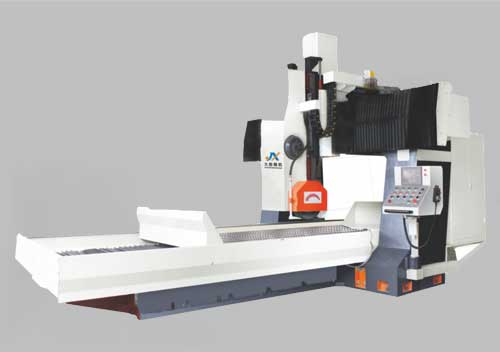

Door Surface Grinder

Category:Longmen Surface Grinder
Number of views：414
Time:2023-07-25

Enquire

Overview

Standard attachments

grinding wheel

1 set of chuck and stable shaft, 1 piece of diamond pen holder

Toolbox and Tools

Special attachments

Electromagnetic suction cup

Simple Numerical Control System

Specification Table
technical specifications		MS2013	MS2016	MS2518	MS3022	MS4025	MS6030	MS8035
Machining	mm
maximum grinding length	mm	2000	2200	2600	3200	4200	6200	8500
Maximum grinding width	mm	1300	1600	1800	2200	2500	2800	3500
Distance between two columns	mm	1350	1650	1850	2250	2250	3050	3550
Maximum passing height	mm	600	600	800	900	1000	1000	1200
Table size	mm	2000x1000	2000x1300	2500x1500	3000x1800	4000x2000	6000x2500	8000x3000
Speed parameter
Table speed	m/min	Infinitely variable speed	5-28	5-28	5-28	5-28	5-25	5-25
Grinding head left and right speed	mm/min	10-3000	10-3000	10-3000	10-3000	10-3000	10-3000	10-3000
Grinding head up and down speed	mm/min	10-1000	10-1000	10-1000	10-1000	10-1500	10-1500	10-1500
Minimum scale for up and down feed of grinding head	mm/min	0.005	0.005	0.005	0.005	0.005	0.005	0.005
Grinding head parameters
Vertical grinding head power	HP	15	15	18.5	18.5	18.5	22	22
Vertical grinding head speed	r/min	1440	1440	1440	1440	1440	1440	1440
Vertical grinding wheel (outer diameter X width X inner diameter)	mm	500x80x203	500x800x203	500x80x203	500x80x203	500x100x203	500x100x203	500x100x203
Workbench load-bearing capacity	kg	2000	4000	5000	6000	8000	12000	15000
External dimensions		6000x2600x2500	6000x3000x2500	7500x3500x2800	9000x3800x2800	12000x4200x3200	6000x3000x2500	2400x5200x6000
power parameters
table-drive motor	HP	7.5	7.5	11	11	15	22	30
Grinding head left and right motors	HP	2.2	2.2	2.2	2.2	2.2	3	3
Grinding head up and down motor	HP	2.2	2.2	2.2	2.2	2.2	2.2	2.2
Other
External dimensions	m	8x4x3.5	9x4.5x3.5	10x4.8x4	11x5x4.5	12x5.5x4.8	16x6x5	20x6.5x5
Whole machine weight	kg	13000	18000	22000	32000	42000	75000	130000
Workbench driver		hydraulic pressure	hydraulic pressure	hydraulic pressure	hydraulic pressure	hydraulic pressure	hydraulic pressure	hydraulic pressure
