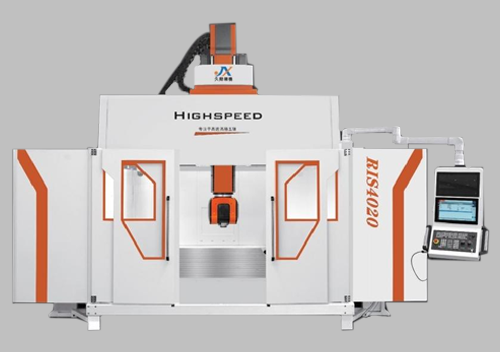

RIS-4020 Crane type box in box five-axis gantry machining center

Category:Crane Type Box In Box Five-axis Gantry Machining Center
Number of views：321
Time:2024-09-20

Enquire

Overview

1. Workbench

The machine tool worktable is made of high-quality gray cast iron castings, with strong wear resistance and good compressive performance. The evenly distributed foundation connection enables the fixed installation of the workbench

The surface is subjected to uniform force, with a load-bearing capacity of 5T/m ².

2. Seat and trailer (X-axis)

The bed and trailer are made of HT300 high-quality material casting as the foundation of the whole machine, with strong rigidity and good shock absorption performance.

The bed guide rail adopts high-precision roller linear guide rail, and the screw rotating heating component adopts water-cooled temperature control technology, effectively solving the accuracy error caused by thermal extension.

3. Sliding saddle and sliding pillow (Z-axle box dual drive structure)

The large sliding saddle is made of high-strength and high-quality castings as the basic component of the mobile sliding pillow, with strong rigidity and good shock absorption performance. The large diamond shaped structure of the sliding pillow is made of high-strength ductile iron 600-3 casting, which has undergone three aging treatments; Double swing head matching slider with a cross-section of 450 × 450mm square slider has strong rigidity, low inertia, and excellent high-speed performance.

The slider guide rail adopts high-precision roller linear guide rail, matched with slider constrained Z-direction guide rail support, with strong spindle suspension rigidity and excellent high-speed performance. The transmission system adopts a servo motor directly connected to drive the ball screw. The double screw drive system on both sides of the slider uses water-cooled temperature control technology for the screw rotating heating component, effectively solving the accuracy error caused by thermal extension. Ensure smooth Z-direction feed reversal and fast dynamic response.

4. Double beam structure (Y-axis)

The large beam is cast as a whole and processed through aging treatment; Large cross-section, strong rigidity, low inertia, and excellent high-speed performance. It can effectively solve the problem that the spindle center of the machine tool will run away with the change of ambient temperature in the workshop environment.

The crossbeam guide rail adopts high-precision roller linear guide rail layout, with large span, strong rigidity, and good seismic performance.

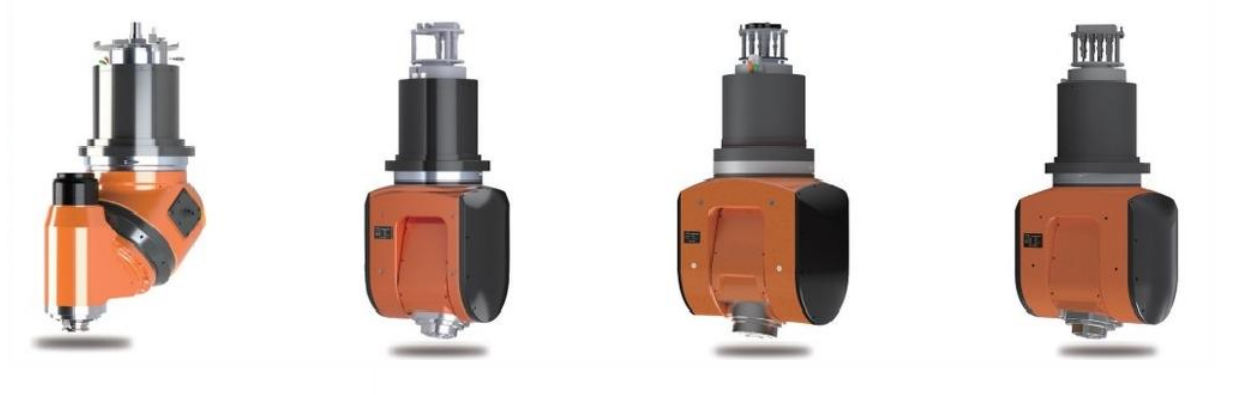

5. Five axis linkage single/double swing milling head (A/C) torque direct drive+electric spindle

Parameters

classification	Project	Unit	Parameters
Machine range	X-axis stroke	mm	4200
	Y-axis stroke	mm	2200
	Z-axis stroke	mm	1050
	A-axis rotation range		±110
	C-axis rotation range		±360
	Longmen effective width	mm	3950
	Distance from the vertical end face of the spindle to the worktable	mm	50~1200
Staging	Workbench size	mm	2000x4000
	Workbench load-bearing capacity	t/m²	5
	T-shaped groove specification (width x spacing)		28x250
	Maximum cutting speed X/Y/Z	m/min	2010/10/10
Feed Drive	Maximum cutting speed A/C	°/s	120/120
	Fast moving speed XMIZ	m/min	5/15/15
	Fast moving speed A/C	rpm	40/40
	Maximum acceleration X/Y/Z	m/s²	2001/1/1
	Maximum acceleration A/C	/s²	1800/1800
Main shaft	Drive mode		电主轴
	Maximum spindle speed	rmp	18000
	Spindle power (S1/S6-40%)	kW	35
	Spindle torque (S1/S6 -40%)	N.m	61/88
	Spindle taper hole		HSK-A63
	Sliding pillow section	mm	450x450
Knife magazine (option)	Tool magazine		24
	Knife handle form		HSK-A63
	Maximum tool diameter	mm	p80
	Maximum tool length	mm	300
	Maximum tool weight	kg	8
Positioning accuracy (according to standard VD13441) in a constant temperature environment	x-axis	mm	0.015
	Y-axis	mm	0.015
	Z-axis	mm	0.01
	A-axis	"(Angular seconds)	5"
	C-axis	"(Angular seconds)	5"
Repetitive positioning accuracy (execution standard)	X-axis	mm	0.01
	Y-axis mm 0.01
	Z-axis	mm	0.005
	A-axis "(Angular seconds) 3"
	C-axis	"(Angular seconds)	3"
Machine Tool R TCP Accuracy Value	The length of the Daibo measuring rod is 150mm, and it is equipped with a Sanfeng micrometer. A-axis angle ± 75 degrees, C-axis ± 300 degrees, feed value F=500
Machine Tool R TCP Accuracy Value		mm	0.02
Other	Total power capacity	kVA	150
	Numerical Control System		SIEMENS ONE
	Machine tool footprint size (length x width)	mm	约8000*6314
	Total weight of the machine	ton	≈55

Standard configuration

Rack base	Double crossbeam	Numerical Control System	coupling
Spindle	AC -axis	Spindle driver	servo motor
Servo Driver	X-axis and Y-axis high-precision ball screw	Imported high-precision guide rail (45) P grade	Imported high-precision guide rail (55) P grade
Z-axis high-precision ball screw	Automatic tool changing system	CNC specialized electrical cabinet	CNC system independent operating platform
Pulling knife device	Air pressure regulator	Electric controlled air conditioning system	lubricating system
Main electrical components	Organ protection	Cooling system	Chip conveyor
Drag chain	monitor system	Fully closed-loop grating ruler	workbench
